Product Description

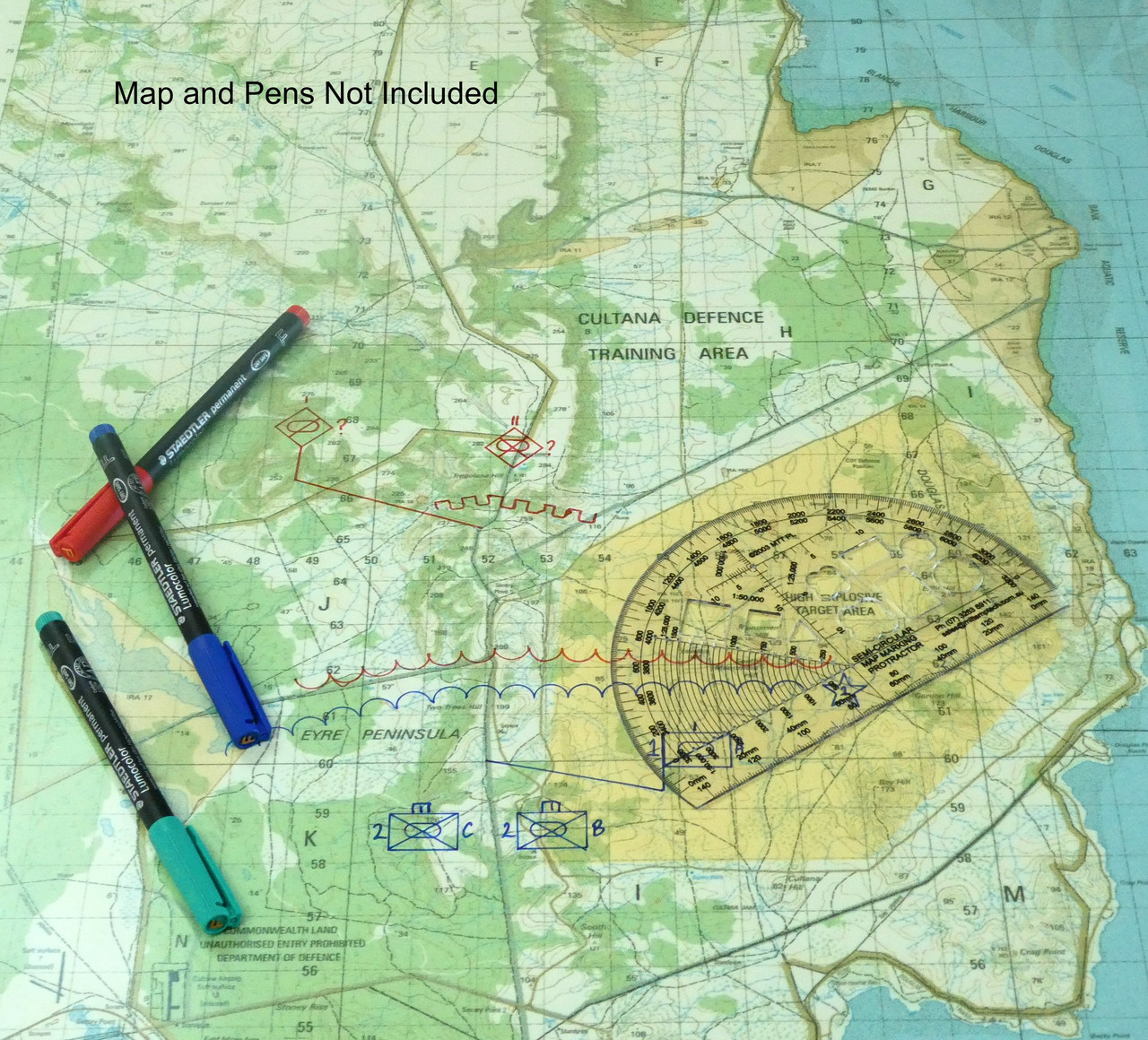

Semi Circular Map Marking Protractor
The SC-MMP combines three field tools on one sheet of 1.5mm PETG — a semi-circular mils protractor, a NATO warfighting symbology stencil, and a range-finding sector. Designed for soldiers, staff officers, cadets and instructors who want their land navigation protractor and their map marking stencil to be the same piece of kit. The protractor base is built on the proven RA and RAA six-inch semi-circular design used by UK MOD, Australian Army, Canadian Army, Royal Marines and Commonwealth cadets. Mils graduated, with integrated coordinate scale plotters for 1:25,000, 1:50,000 and 1:100,000 military topographic maps. The map marking stencil shapes let you mark friendly, enemy and neutral unit symbols during operations planning, sand-table briefings and training overlays without reaching for a separate NATO map marking stencil. The range-finding sector provides a built-in visual range estimate, reducing the need for a separate range finder card during rapid mission planning. Printed on 1.5mm PETG: UV-cured graphics on the reverse for zero parallax error. Waterproof, UV stable, solvent-resistant, flexible. Flexes into a map case or cargo pocket without cracking. Ideal uses: infantry patrol planning, artillery FDC and forward observer training, RMC, ADFA and Australian Army Cadets map marking exercises, SAR, orienteering course setting, and operations cell overlays. shipped from Buderim QLD, manufactured in Australia.
Features
- Three Tools in One — Semi-circular mils protractor, NATO warfighting symbology stencil and range-finding sector on a single sheet of 1.5mm PETG. Plot, mark and estimate range without swapping tools.
- Proven RA and RAA Base — Built on the trusted six-inch semi-circular design familiar to every ADF, UK and Commonwealth soldier. Mils graduated with integrated coordinate plotters for 1:25,000, 1:50,000 and 1:100,000.
- Map Marking Stencil Built In — Cut-through stencil shapes for infantry, armour, artillery, command posts, objectives and neutral units. A complete NATO map marking stencil already on your protractor.
- Range-Finding Sector Integrated — Estimate ground distance directly on the map without a separate range finder card. Useful for patrol planning, indirect fire initiation and SAR.
- Zero Parallax, Field Tough — Reverse-printed on 1.5mm PETG, UV-cured inks, waterproof, UV stable, solvent-resistant. shipped from Buderim QLD, made in Australia.
Specifications
- Size:
- Manufacture:
- Protractor:
