Product Description

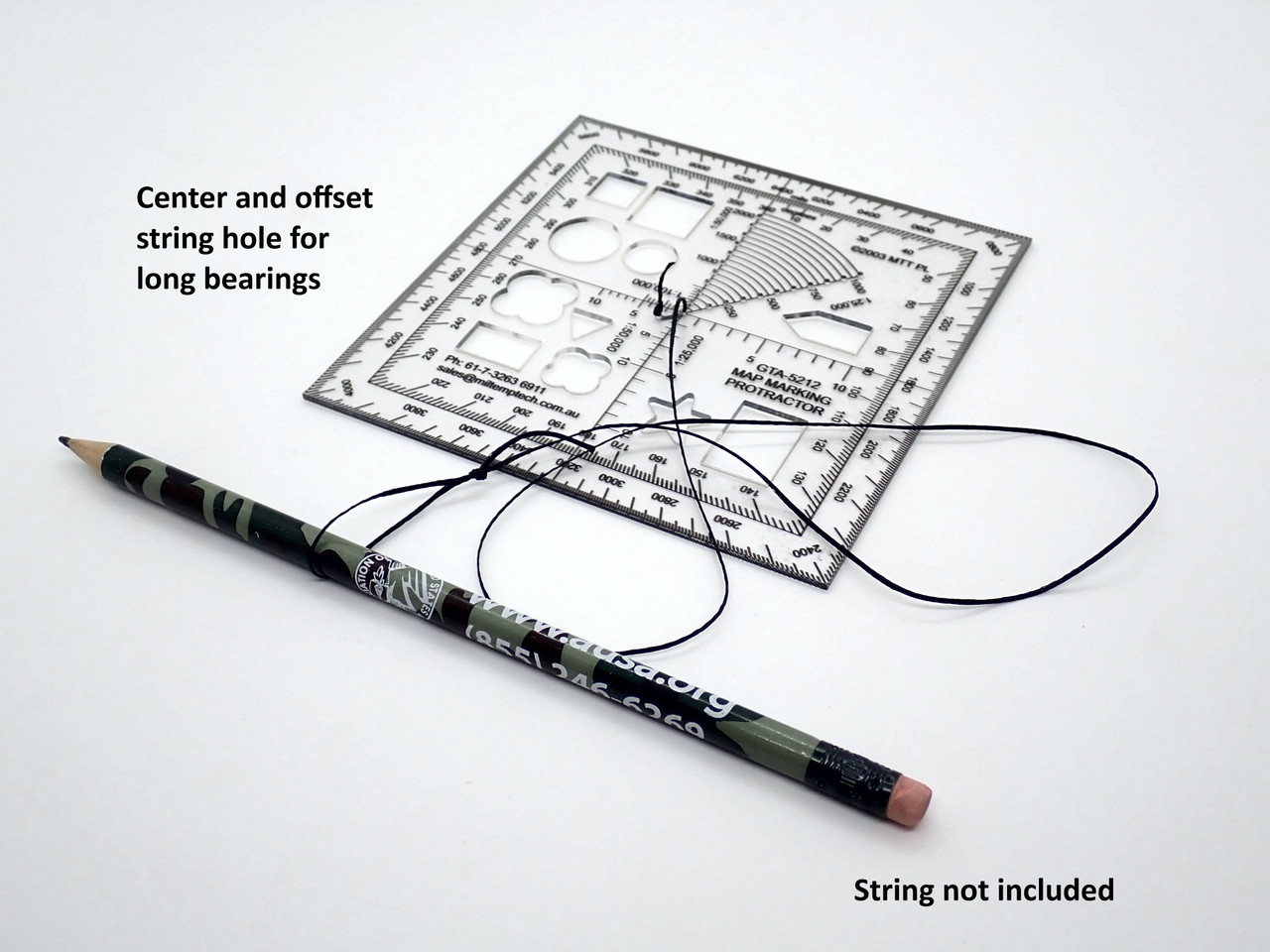

GTA 5212 Map Marking Protractor
The GTA-MMP bundles three tools into one sheet of 1.5mm PETG — the DOD GTA 05-02-012 Coordinate Scale and Protractor, a NATO military map marking stencil, and a range-finding sector. Designed for soldiers, staff officers, RMC, ADFA and Australian Army Cadets instructors who want one piece of kit that plots coordinates, measures bearings, marks tactical symbology and estimates range directly on the map. The protractor base is the same trusted GTA 05-02-012 design in active service across US and allied forces. Graduated in degrees and mils with three integrated coordinate scales (1:25,000, 1:50,000, 1:100,000), it handles every standard NATO military topographic map and UK Ordnance Survey sheet. Cut-through stencil shapes on the protractor body let you mark friendly, enemy and neutral unit symbols during map marking, operations planning and sand-table briefings without reaching for a separate NATO map marking stencil. The range-finding sector provides a built-in visual range estimate, reducing the need for a separate range finder card during fast planning cycles. Reverse-printed graphics on 1.5mm PETG eliminate parallax error during precise coordinate plotting — a key reason land nav instructors prefer this construction over thick acrylic. Field-proven durability: UV-cured inks, solvent-resistant, waterproof, UV stable. Flexes into a cargo pocket, map case or field pack lid without cracking. Ideal for British Army land navigation, NATO joint exercises, RMC, ADFA and Australian Army Cadets field weekends, orienteering events, SAR and bushcraft.
Features
- Two Tools in One — Proven DOD GTA 05-02-012 Coordinate Scale and Protractor combined with NATO map marking stencil shapes and a range-finding sector. Plot a fix, measure a bearing and mark unit symbols without swapping tools.
- Full Land Nav Coverage, Degrees Plus Mils — Graduated in both degrees and mils with coordinate scale plotters for 1:25,000, 1:50,000 and 1:100,000 military topographic maps. The army protractor of choice for land navigation, call for fire and battle map work.
- NATO Symbology Stencil Built In — Cut-through stencil shapes for infantry, armour, artillery, command posts, objectives and other warfighting icons. Covers the standardgraph-style battle map stencil duties for training overlays and sand-table exercises.
- Range-Finding Sector Integrated — A built-in range sector lets you estimate ground distance directly on the map, without a separate range finder card. Useful for quick target estimates and patrol planning.
- Zero Parallax, Field Proven — Reverse-printed on 1.5mm PETG for flush-to-paper accuracy. UV-cured, solvent-resistant inks. Waterproof, UV stable and flexible. Made in Buderim, Queensland with fast Australia-wide dispatch.
Specifications
- Size:
- Manufacture:
- Protractor:
